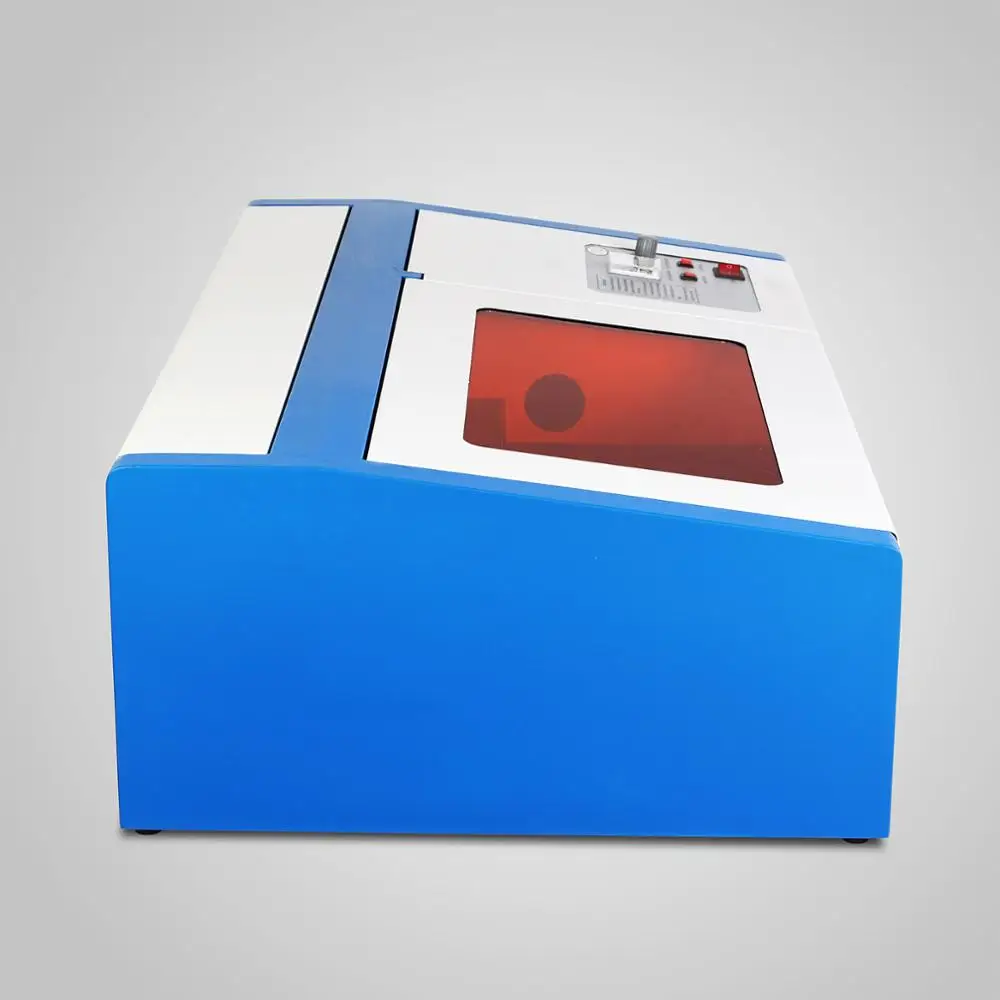

usb port replacement Updated HIGH PRECISE And HIGH SPEED Third Generation CO2 Laser Engraving Cutting Machine USB PORT

FOB Reference Price:Get Latest Price
  • 1 - 9 Sets
    $399.00
  • 10 - 49 Sets
    $375.00
  • >=50 Sets
    $355.00
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
CO2
Engraving Speed:
1000mm/s
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Engraving
Engraving Area:
300*200mm
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
China
Brand Name:
vevor
Model Number:
3020
Dimension(L*W*H):
95*63*41cm
Certification:
CE
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
5000 Set/Sets per Day
Packaging & Delivery
Port
Shanghai
Lead Time :
4

introduction

This CO2 engraving machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver. This brand new DC-KIII CO2 laser engraver is equipped with one 40W water cooling laser tube, high precise stepping motors, high quality control board. It employs an USB port and thus can be connected to your laptop or desktop. By the support of included software, Coreldraw, this machine can work well with multiple graphic formats including EMF/JPG/PLT/WMF. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.

The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic and Plastics. If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.

1.Applicable Material:
Wood, paper, leather, cloth, Plexiglas (cuts rather shallow on normal glass), epoxy resin, density board, double-colored board, marble, plastic, rubber, crystal, bamboo and other nonmetal materials. All laser engraving machines can not carve and cut metal or ceramics.
2.Applicable Industry:
This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.
This CO2 engraving machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver. This brand new DC-KIII CO2 laser engraver is equipped with one 40W water cooling laser tube, high precise stepping motors, high quality control board. It employs an USB port and thus can be connected to your laptop or desktop. By the support of included software, Coreldraw, this machine can work well with multiple graphic formats including EMF/JPG/PLT/WMF. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.

The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic and Plastics. If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.

1.Applicable Material:
Wood, paper, leather, cloth, Plexiglas (cuts rather shallow on normal glass), epoxy resin, density board, double-colored board, marble, plastic, rubber, crystal, bamboo and other nonmetal materials. All laser engraving machines can not carve and cut metal or ceramics.
2.Applicable Industry:
This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.

Features
This machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver.

  • USB Port to Computer.
  • CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.
  • Adopt Japan imported mainboard and chip which can control the engraving more precise.
  • Adopt Germany imported bearing and high accuracy stepping belt which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 LASER Engraver.
  • The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
  • Built the heat dispersed fan to reduce all electronic component's temperature. Thus lengthen electronic component's life and the higher technical volatility.
  • High Precision Stepping motor makes engraving more precise.
  • This machine supports any kind of model printer, the scanner.Be compatible with TIF international standard fonts and BMP/JPG/JPEG/WMF/EMF/PLT.
  • 2 Years Free Warranty





Technical

  • Interface to Computer:USB Port
  • FDA Compliant:Yes
  • CE Certification:Yes
  • ISO9001 Quality Certification:Yes
  • Laser Type:CO2 Gas
  • Tube Trigger Volt:20KV
  • Tube Operating Volt:15KV
  • Current:0~22mA
  • Engraving Area:12x8in (300x200mm)
  • Maximum Item Size to Engrave:10.25W x 8.75L x 2.85H in (260mm x 220mm x 70mm)
  • Laser Tube (life hours):1000-1300 Hours
  • Laser Power:40W
  • Engraving Speed:0-13.8 in./s  (0-350mm/s)
  • Cutting Speed:0-1.38 in./s (0-35mm/s)
  • Minimum Shaping Character:0.04 X0.04in (1mm X 1mm)
  • Resolution Ratio:0.001 in (0.026mm) / (1000dpi)
  • Power Supply:110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
  • Resetting Positioning:≤0.0004 in (0.01mm)
  • Motor Type:Stepper Motor
  • Software Supported: CorelDraw software (both NewlyDraw and NewSeal function)
  • Power Consumption:≤250W
  • Operating Temperature:32-113F (0-45C)
  • Graphic Format Supported:BMP/JPG/JPEG/WMF/EMF/PLT
  • Water Cooling:Water Pump include
  • Recommended Spare Parts/Consumables:Laser Tube, Focal lens,Reflection lens
  • Product Dimensions:31.4 X 19.6 X 9.8in.(800x500x250mm)
  • Product Weight:30Kg/67lb (shipping 38kg/80lb)



package

  • 1 x CO2 LASER Engraver
  • 1 x Water Pump
  • 1 x Smoke Pipe
  • 1 x Smoke Fan
  • 1 x Power Wire
  • 1 x USB Cable
  • 1 x USB Key
  • 1 x Accessory Bag
  • 1 x Instruction Video
  • 1 x English User Manual
